Description
Our Motion Constrained flange mount shaft collar / shaft coupler is available in black oxide finish for bores ranging from 1/4″ to 1-1/8″ bore. This flange mount shaft collar is custom-machined for our internal applications but equivalent to main brand products (see table below), with the exception of having all tapped threads and at a much lower price.
| Model | Bore | Mounting Holes Construction | Mounting Bolt Hole Circle | Equivalent part number |
|---|---|---|---|---|
| MCSC-1/4 | 1/4″ | 4-40 Tapped Threads Black Oxide C1117 Steel | 1-5/32″ | 9684T27 |
| MCSC-3/8 | 3/8″ | 6-32 Tapped Threads Black Oxide C1117 Steel | 1-3/8″ | 9684T28 |
| MCSC-1/2 | 1/2″ | 8-32 Tapped Threads Black Oxide C1117 Steel | 1-7/8″ | 9684T1 |

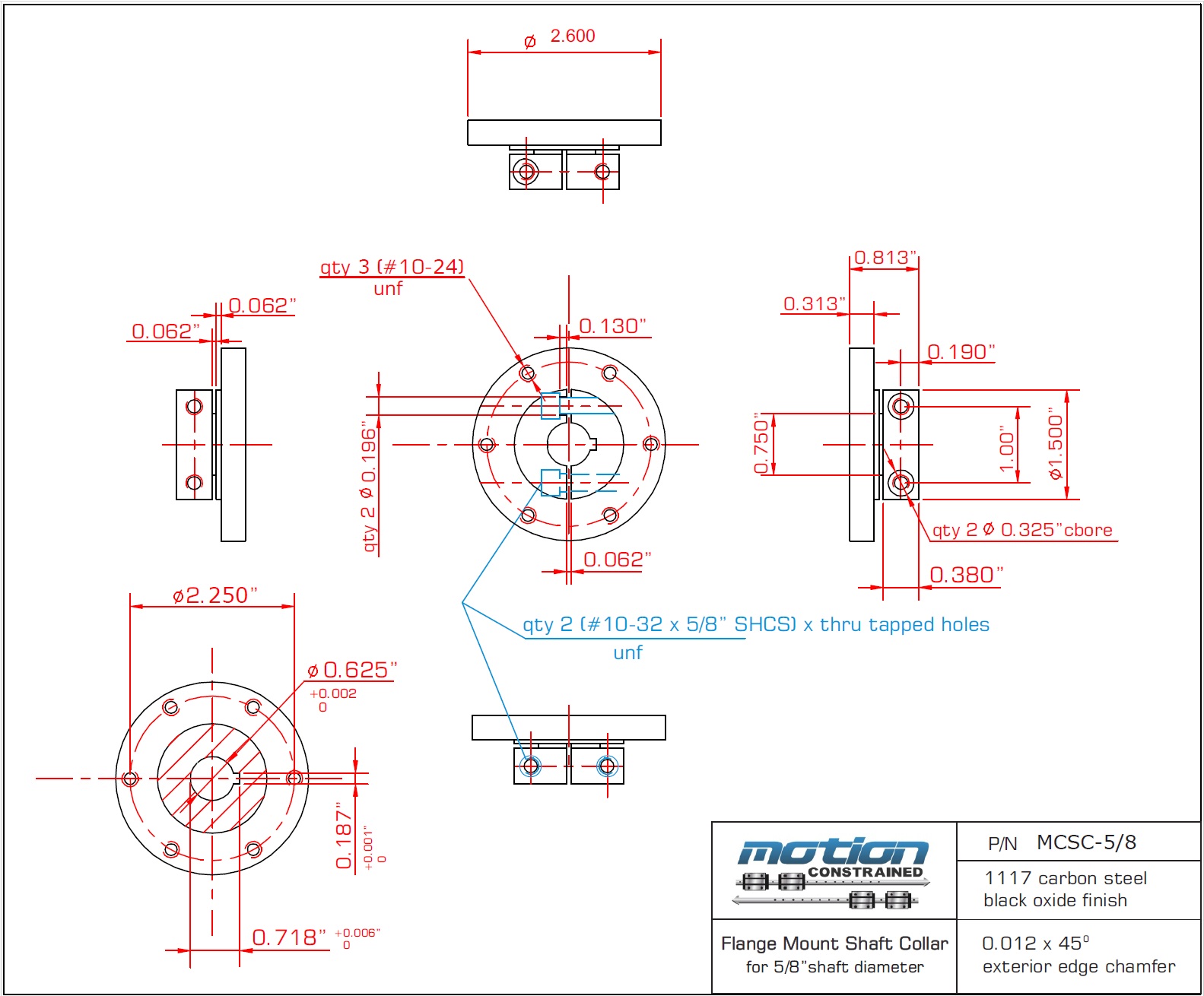

| MCSC-5/8 | 5/8″ | 10-32 Tapped Threads Black Oxide C1117 Steel | 2-1/4″ | 9684T2 |
| MCSC-3/4 | 3/4″ | 1/4″-20 Tapped Threads Black Oxide C1117 Steel | 2-1/2″ | 9684T3 |
| MCSC-7/8 | 7/8″ | 1/4″-20 Tapped Threads Black Oxide C1117 Steel | 2-3/4″ | none |
| MCSC-1 | 1″ | 1/4″-20 Tapped Threads Black Oxide C1117 Steel | 2-3/4″ | 9684T4 |
| MCSC-1-1/8 | 1-1/8″ | 1/4″-20 Tapped Threads Black Oxide C1117 Steel | 2-3/4″ | 9684T29 |
